    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT

    Ask Lasest Price
    Supply Ability : 100 Set/Sets per Month
    Price : $1,120.00/sets 1-9 sets
    • Product Details
    • Company Profile

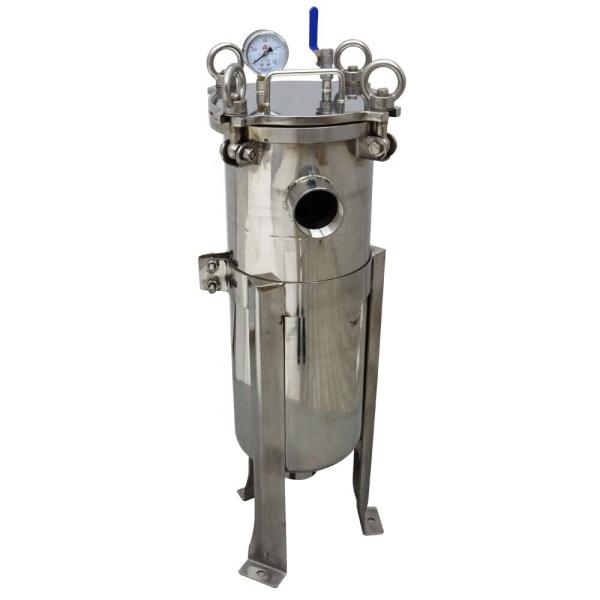

    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT

    Product Description
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT
    * 316 Stainless Steel Construction
    * 8”x 30” Trade Size # 2 Housing
    * 2” Flanged Inlet and Outlet Connections
    * Viton® O-rings standard
    * 150 psi Maximum Working Pressure
    * 100 gpm Max. Flow Rate
    * Operating Temperature: normal range of 50°F - 90°F. Variance outside of this temperature range will affect maximum operating pressure rating. Liquids operating at elevated temperatures pose a risk of burns.
    * Stainless Steel Strainer Basket and Internal Bag Support Rack
    * Drain Port and Mounting Stand
    * Safety Release Vent for Maintenance
    * Head loss is negligible with an empty housing and clean bag(s)
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT

    Pressure Gage

    Real-time pressure in the filter can be directly observed.
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT

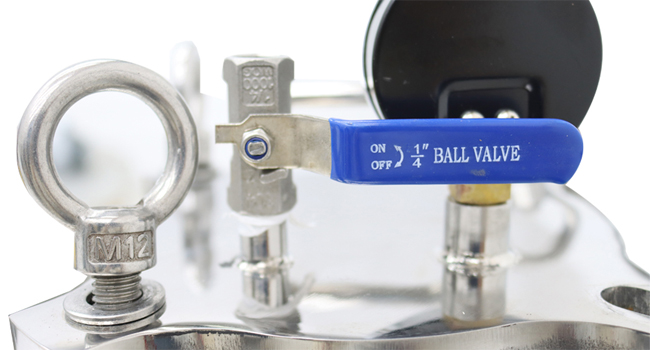

    Exhaust Valves

    The safety ball valve releases and exhausts pressure with one click, preventing excessive pressure inside the filter and extending the service life of the machine.
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT

    1″Inlet/Outlet

    1″inlet and outlet (internal thread), with a side in and bottom out filtration method, allows liquid to flow from high to low, and the filter bag is not affected by turbulence, improving its filtration efficiency and service life.
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT

    Stainless Steel Strainer And Filter Bag

    The filter comes with a 5-mesh stainless steel strainer and a 20 μm filter bag. The filter bag can be cleaned and reused.
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT

    Eyenut

    M12 eyenut, fastening the lid, easy and fast.
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT

    Movable Leg

    The height of the support legs is 300mm. Based on the height of the inlet and outlet, the height of the machine from the ground can be determined by adjusting the support legs.
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT
    Packing & Delivery
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT
    Plywood Case
    Company Profile
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT
    62KG Stainless Steel Bag Filter Housing for Construction Works and Filtration 2" NPT
    FAQ
    Question 1: Are you manufacturer?
    Yes, we are manufacturer with 5 production lines, R&D and oversea market department.

    Question 2: Can you provide OEM service?
    Yes, we have more than 10 years of OEM experience and provide this service.

    Question 3: Can you provide sample? Free or chargeable?
    Yes, we can provide free sample for filter elements, all filter housings are chargeable.

    Question 4: Does the product support customization? Products can be customized base on our current mould.

    Question 5: What is the payment terms?
    TT/LC, Via Alibaba.

    Question 6: How to choose the shipping way? It depends on the order QTY, detailed information, please refer to our [packing&shipping].
